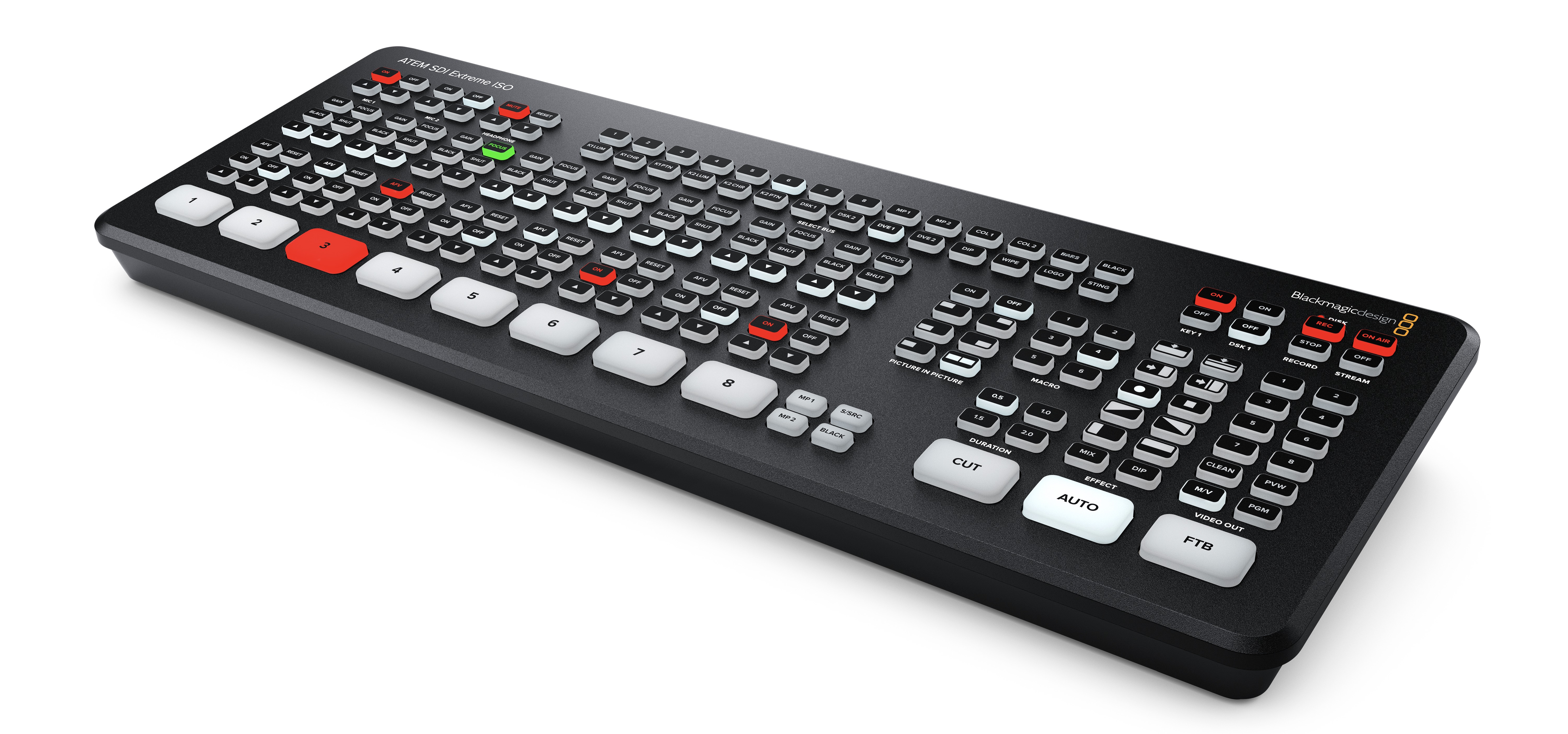

Blackmagic Design ATEM SDI Extreme ISO Switcher

Key Information:

•Model: Blackmagic Design ATEM SDI Extreme ISO Switcher
•Type: Professional live production switcher

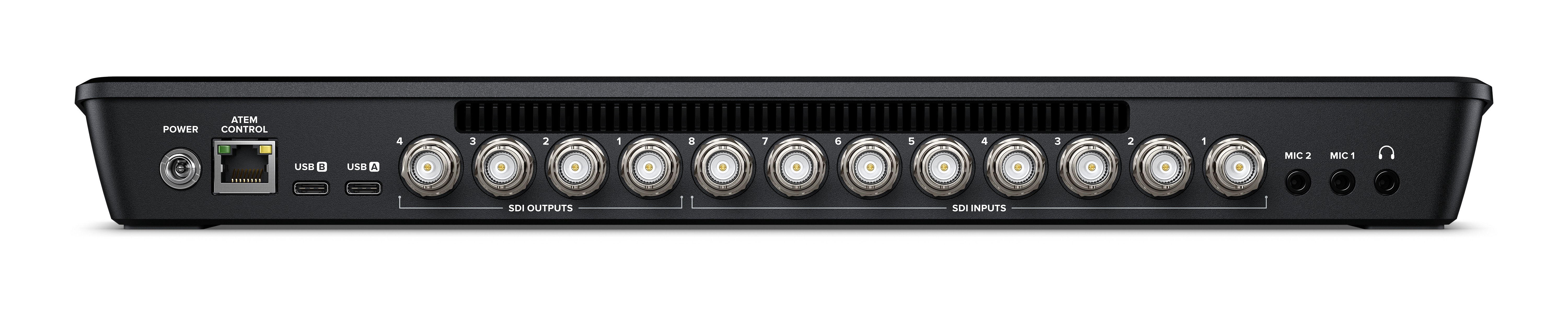

•Video Inputs: 8 x 3G-SDI
•Video Outputs: 2 x 3G-SDI (Program, Aux)
•Multiview Outputs: 1 x 3G-SDI, 1 x HDMI
•Recording: 8-channel ISO recording plus program output
•Streaming: Built-in hardware encoder for direct streaming
•Audio Inputs: 2 x 3.5mm stereo mini jack
•Audio Outputs: Embedded audio via SDI

Detailed Specifications:

•Video Standards: SD, HD, up to 1080p60
•Input Resynchronization: On all 8 inputs
•Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
•Multiview: Multiview with up to 16 customizable views
•Transitions: Mix, Dip, Wipe, DVE, and more
•Keyers: 4 upstream chroma keyers, 2 downstream keyers
•DVE: Built-in DVE with 3D borders, drop shadow, and DVE effects
•Media Pool: 20 stills, 2 media players
•Recording Formats: H.264
•Control: ATEM Software Control Panel, hardware control panels, Ethernet, USB
•Dimensions: 12.8 x 6.8 x 1.8 inches
•Weight: 1.6 kg (3.5 lbs)
•Power: 12V DC power supply

How and Why This is a Great Product:

1. Advanced Live Production Capabilities:

•8 SDI Inputs: Supports up to 8 cameras or video sources with full re-sync on all inputs, making it ideal for complex live productions.
•Built-in Hardware Encoder: Enables direct streaming to platforms like YouTube, Facebook, and Twitch without the need for additional hardware, simplifying the streaming process.

2. ISO Recording:

•8-channel ISO Recording: Records all 8 inputs as isolated files, plus the program output. This allows for detailed post-production editing, providing flexibility and enhancing the quality of the final production.

3. Professional Audio Features:

•Embedded Audio and Mini Jack Inputs: Provides high-quality audio integration with the video feed, ensuring synchronized and clear sound. The 3.5mm stereo mini jack inputs offer additional audio input flexibility.

4. Extensive Multiview Capabilities:

•Customizable Multiview: The multiview output allows monitoring of all 8 inputs, preview, and program on a single screen, with customizable views to match the production’s needs.

5. Powerful Keying and Effects:

•4 Upstream Chroma Keyers: Ideal for virtual sets and green screen productions, offering professional-grade keying for clean and realistic composites.
•Advanced Transitions and DVE: Provides a wide range of transitions and digital video effects, including 3D borders and drop shadows, enhancing the visual appeal of live broadcasts.

6. Flexible Control Options:

•Multiple Control Interfaces: Can be controlled via the ATEM Software Control Panel, hardware panels, Ethernet, and USB, providing versatility and ease of use for operators.

7. Reliable and Robust Design:

•Portable and Compact: The switcher’s compact size and lightweight design make it easy to transport and integrate into various production setups, without compromising on performance.
•Solid Build Quality: Designed to withstand the demands of live production environments, ensuring reliability and durability.


The Blackmagic Design ATEM SDI Extreme ISO Switcher is an exceptional product for professional live production. Its extensive input capabilities, advanced keying, and transitions, along with ISO recording and built-in streaming, make it a versatile and powerful tool for broadcasters, event organizers, and live streamers. The switcher’s robust design, flexible control options, and comprehensive multiview capabilities further enhance its appeal, making it an indispensable asset for high-quality live production.
